SPECIFICATIONS



7-8 days delivery

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Wireless Communication: RF

Support APP: No

Certification: CE

Certification: ROHS

Frequency: 433 MHz

Channel: 2

Package: Yes

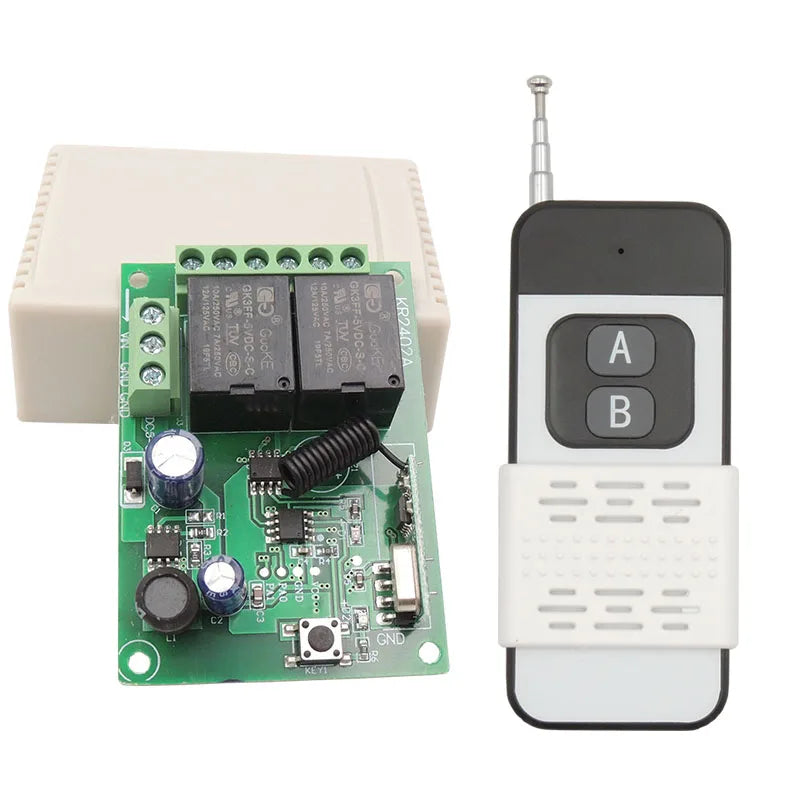

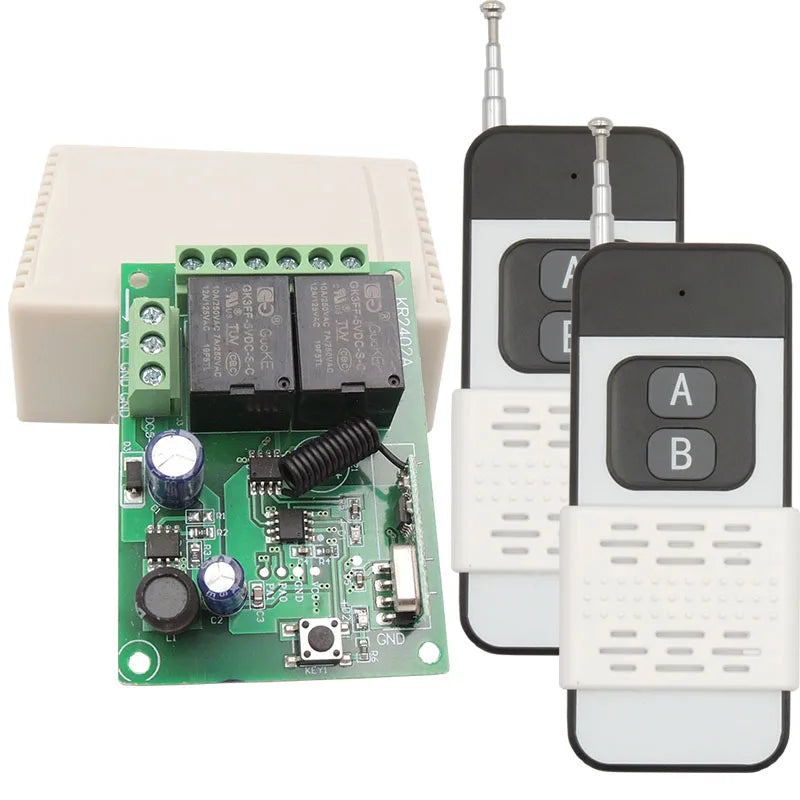

Model Number: DC 5V~30V 10A 1000M Long Range Remote Control for Garage Door Opener

Working Voltage: DC 6V~30V

Input/Output Voltage: 1V-250V

Max current: 10A

Max load: 2000W

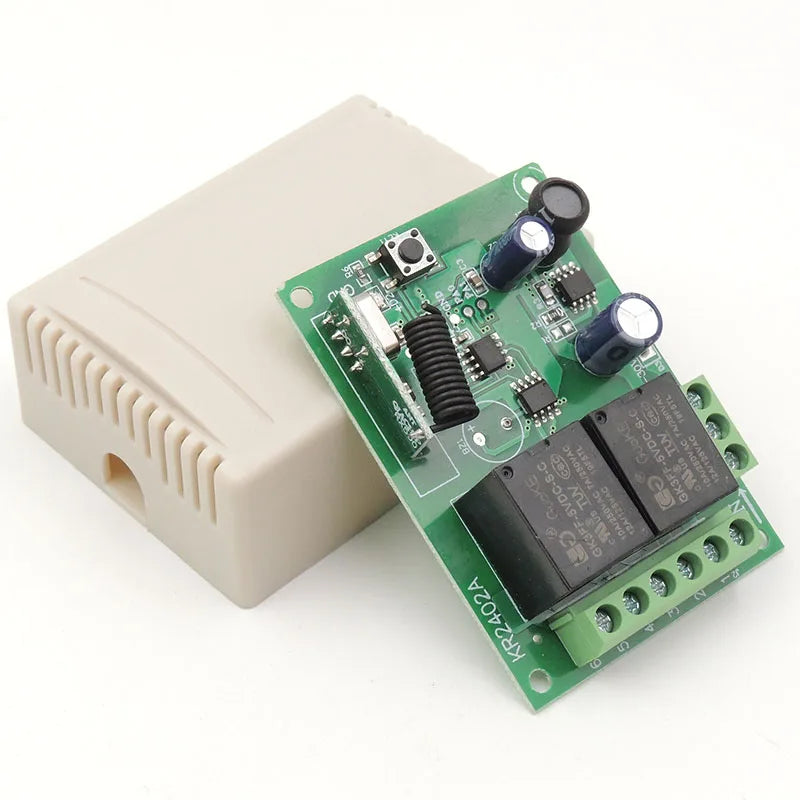

Receiver Size: 2.8*2.0*0.7 in

Receiver Weight: 0.15 lb

Quiescent Current: 5mA

RF frequency: 433MHz

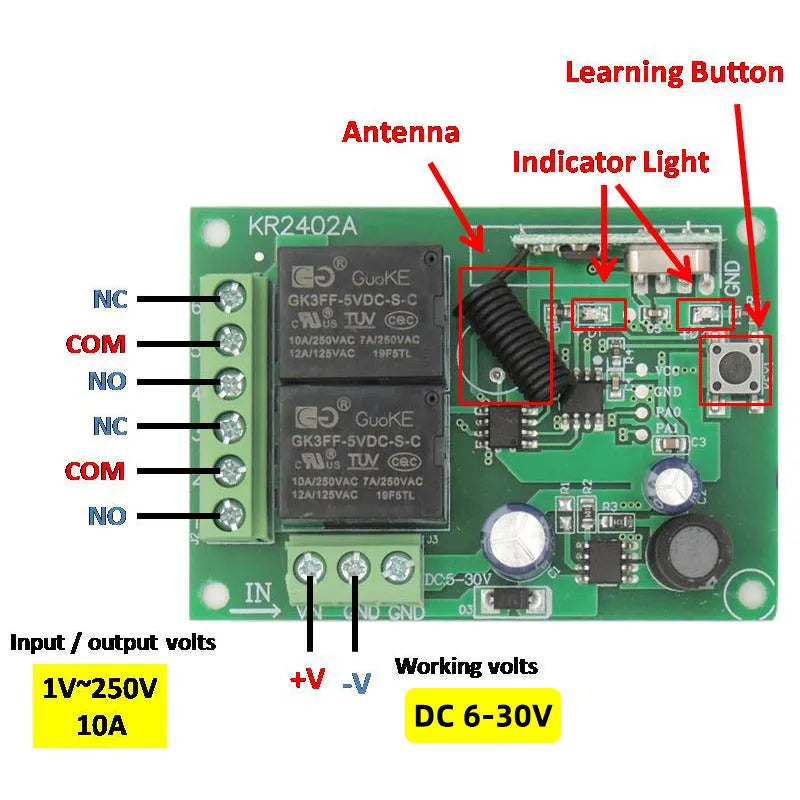

Pin: NO / COM / NC

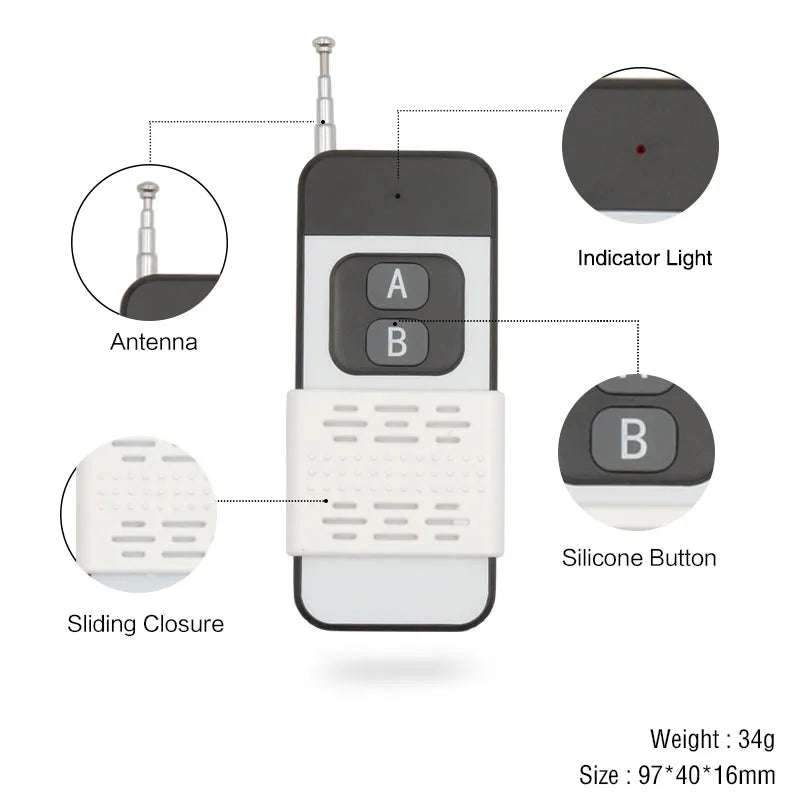

Remote Control Size: 3.82*1.57*0.63 in

Remote Control Weight: 0.08 lb

Remote Control Battery: 1pcs 27A12V(include)

Remote Control Range: Open space is more than 1000 meters

Remote Control Feature: 1000 Long range control,Slide Cover

Working temperature: -30~+80

Receiving Sensitivity: 97dbm

Amount of storage remote controls: 20 pieces

Support encoding: 1527 Leaning code/2262 fixed code

RF Operating mode: ASK superheterodyne wireless reception

Remote operating mode: Momentary / Toggle/ Latched/ Delay Mode

Application scenario: House, Farm, Factory, Office, Supermarket

Application2: Garage,Motor, Light, Automated curtains, Fan, Door, Gate, LED, Lamps

Choice: Yes
