C70 Technical parameters
Physical parameters
Scan mode
Key trigger/auto-sensing/continuous scanning

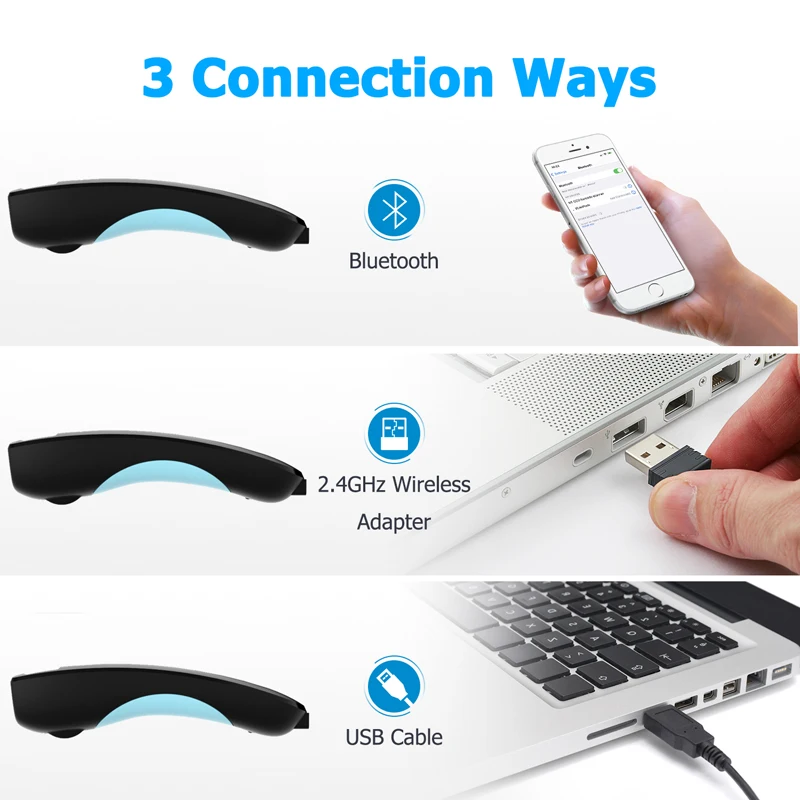

Communication interface
USB-HID keyboard/USB-COM virtual serial port/RS232 serial port (optional).
Interface type
USB TYPE-B
Prompt mode
Buzzer, LED light, vibration motor
How it is set up
Manually scan the setup codes one after the other
Housing material
ABS+PC
Exterior dimensions
122mm×42mm×30.5mm
Weight
60g
Performance parameters
Sensors
300,000 Global CMOS
Resolution
640*480
Light source
White LED
Scan angle
± 60°, ±60°, 360° (elevation, declination, rotation).
Scan rate
120 fps
Field of view
48° (H) x 30° (V)
Printing contrast
Minimum 15%.

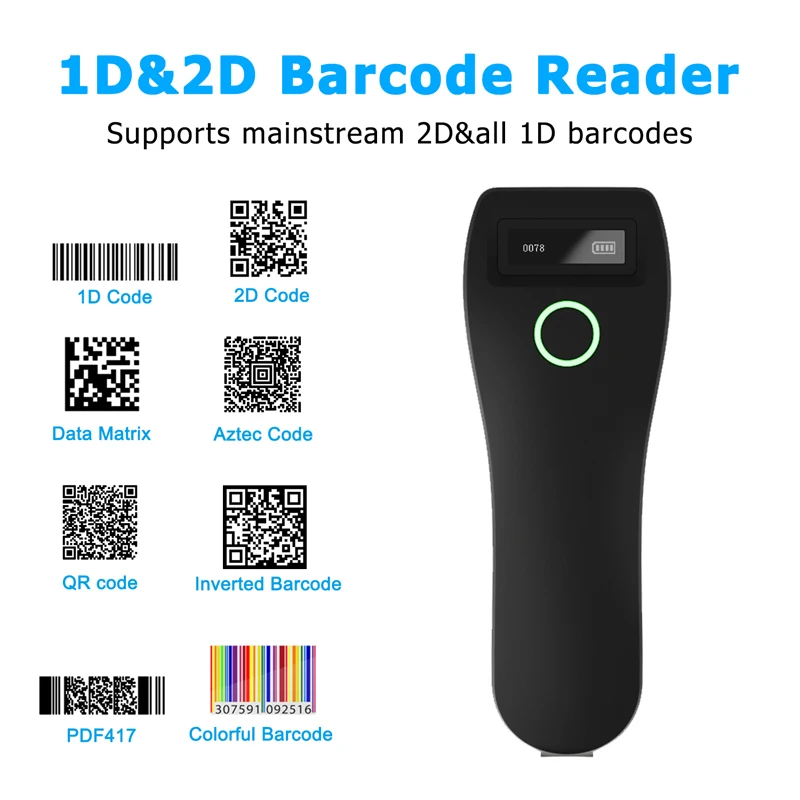

Decoding kind
1D:EAN- 13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar，Code 128，Code93，ITF- 14，ITF-6，Interleaved 2 of 5， Industrial 2 of 5，Matrix 2 of 5，
GS1 Databar(RSS)，Code 39，Code 11，MSI-Plessey，etc
2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc., support mobile screen reading
Minimum resolution
1D code 3MIL; QR code 5MIL
Depth of field
QR (15mil) 30~210mm
QR payment code (mobile code) 80~550mm
Data Matrix(10mil) 30- 140mm
PDF 417(6.7mil) 50- 120mm
EAN-13 (13mil) 50~280mm
Code 39 (8mil) 30- 190mm
Code 128 (15mil) 80~320mm
Electrical parameters
Input voltage
DC 5V±10%
Current
Working: 350 mAh; Standby: 130 mAh
Battery
900mAh lithium-ion battery
Charging time
About 2 hours
Battery life
5 days (standby), 12 hours (working: scan every 5 seconds)
Environment parameters
Temperature
0°C-50°C (working); -40°C~+60°C (storage).
Humidity
5%-95% non-condensing
Ambient brightness
Max.5,000 Lux (fluorescence)
Seismic resistance
It can withstand a drop in the air of 1.5m
